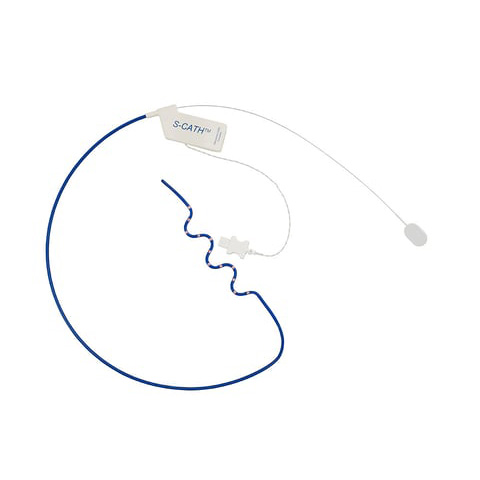

S-CATH Esophageal Temperature Probe

s-catch-probe-1

Designed for the Unique Needs of the OR and EP Lab

During therapeutic procedures, esophageal temperatures can change quickly.  S-CATH provides faster, more accurate temperature detection to both HOT and COLD temperature changes. The probe deploys an array of 12 fully insulated, fast response temperature sensors on a uniquely designed soft, flexible, “S” shape providing Edge-to-Edge coverage.

Designed for the Unique Needs of the OR and EP Lab

Specifications and Ordering Information

Number of Temperature Sensors

12 (+1 400-Series Thermistor)

Shape of Deployed Array

Flexible S-Shape positions 12 sensor array throughout the esophagus

Type of Temperature Sensor

Thermistor

Temperature Measurement Range

0ºC to 45ºC

Temperature Accuracy

± 0.3ºC from 25-45ºC
± 0.4ºC from 0-24.9ºC

Probe Diameter (OD)

10 French / 3.3 mm

Usable Length

65 cm (tip to connector housing)

Sensor Band Material

Copper

Sensor Band Length

2.5 mm

Exposed Metal (per sensor)

None

Probe Shaft Material

Polyurethane (Barium-loaded) with Medical-grade Pebax® Coating

Radiopaque

Yes

Connector (s)

Unidirectional Connector to Cable

Electrical Safety

Meets IEC 60601-1:2005 + A1: 2012 when used with CIRCA Scientific Interconnect Cable and Monitor

# of Stylets

1

Packaging Unit

1 unit / shelf box

Packaging Description

Thermoform tray with cover

Sterilization

Non-sterile

Expiration

Three years from date of manufacture

Key Benefits

Response Time

An independent study of 198 applications in 10 patients, the S-CATH recognized an initial temperature rise of 0.2ºC 17 seconds faster than a single sensor probe.1

LEARN MORE
Edge to Edge Coverage

In the same study, a temperature rise of >2.0°C was recorded 40 times by the S-CATH. Single sensor probes missed 90% of those temperature rises.1

LEARN MORE
RF Antenna Effect

PEBAX coating electrically insulates temperature sensors so there is no bare metal exposure.

LEARN MORE
Lateral Positioning Problems

Linear and single sensor temperature probes, no matter how fast, are prone to far lateral positioning in the esophagus.

LEARN MORE

How Can S-CATH Help You?

Click the button below to learn more about how the S-CATH Esophageal Temperature Probe can be utilized in your therapeutic procedures.

S-CATH Resources

S-CATH Accessories

cs101-interconnect-cable

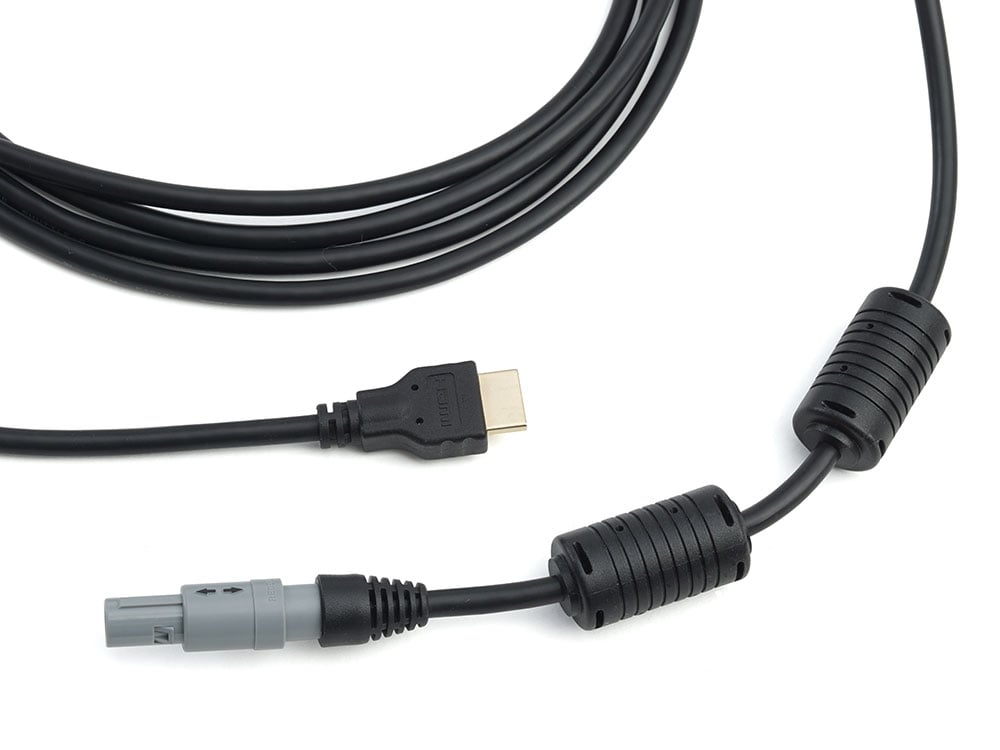

CIRCA Interconnect Cable

The CIRCA S-CATH Interconnect Cable is designed to connect the CIRCA S-CATH™ and the S-CATH™ M to the CIRCA Temperature Monitoring System™.

cs1029-temperature-standard

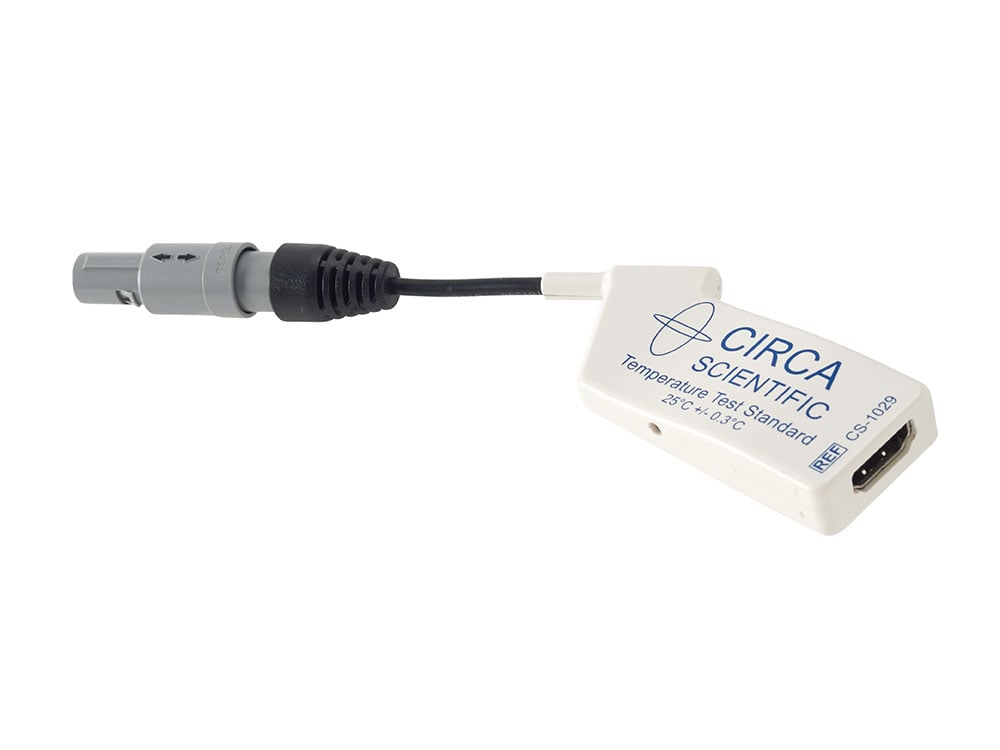

CIRCA Temperature Standard

The CIRCA Temperature Standard is used to verify the accuracy of the CIRCA Temperature Monitoring System™.

cs1083-data-transfer

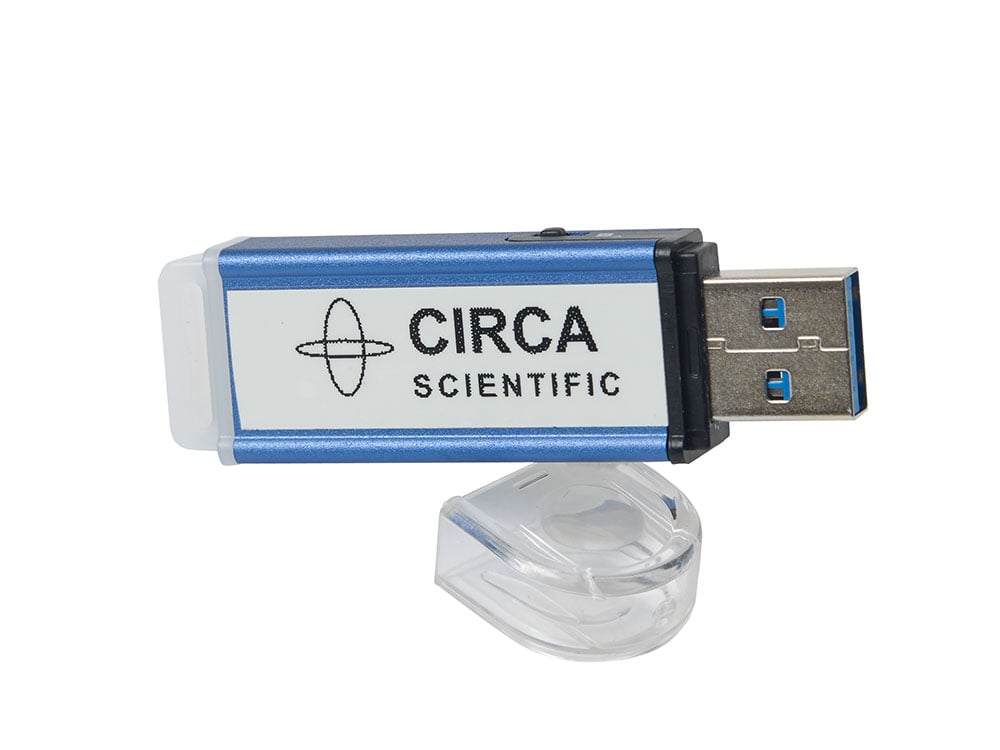

CIRCA Data Transfer Drive

The CIRCA USB Data Transfer Drive is used to download temperature data files from the CIRCA Temperature Monitoring System™.

Ready to Trial S-CATH?

Click the button below to request an evaluation of the S-CATH Esophageal Temperature Probe.

Related Products

Regulatory Information

Indications for Use

The Esophageal Temperature Probe is intended for continuous temperature monitoring. The radiopaque probe is designed for placement in the esophagus.

Regulatory Clearances

FDA 510(k)

References

1 Tschabrunn, CM, et al., Comparison between single- and multi-sensor esophageal temperature probes during atrial fibrillation ablation: thermodynamic characteristics, Europace 2015 doi:10.1093/europace/ euu356.

2 Electrical and Thermal Effects of Esophageal Temperature Probes on Radiofrequency Catheter Ablation of Atrial Fibrillation: Results from a Computational Modeling Study; Pérez JJ, d’Avila A, Aryana A and Berjano E, ; doi: 10.1111/jce.12630
