PeriCross™ Epicardial Access Kit
Built For Procedural Confidence and Control
The PeriCross™ Epicardial Access Kit is purpose-built to support efficient, controlled access to the epicardial space via a subxiphoid approach. It combines intuitive design with integrated safeguards to assist physicians during this critical procedure helping streamline workflow and support timely access
The Challenge of Epicardial Access
Epicardial access remains one of the most technically demanding steps in electrophysiology procedures. The heart's constant motion, delicate anatomy, and lack of visual or tactile feedback contribute to a challenging and stressful environment.
Key Considerations
- Thin, mobile pericardium (~1 mm)
- Risk of cardiac and extra-cardiac complications, including RV puncture,
vascular injury, or bleeding - Conventional tools lack precision and predictability
The PeriCross Solution
System Features
- Tine-based pericardial capture to create separation before puncture
- 21G micro-puncture needle designed to minimized trauma
- Interlock prevents needle deployment until tines are engaged
- Coaxial introducer for seamless guidewire exchange

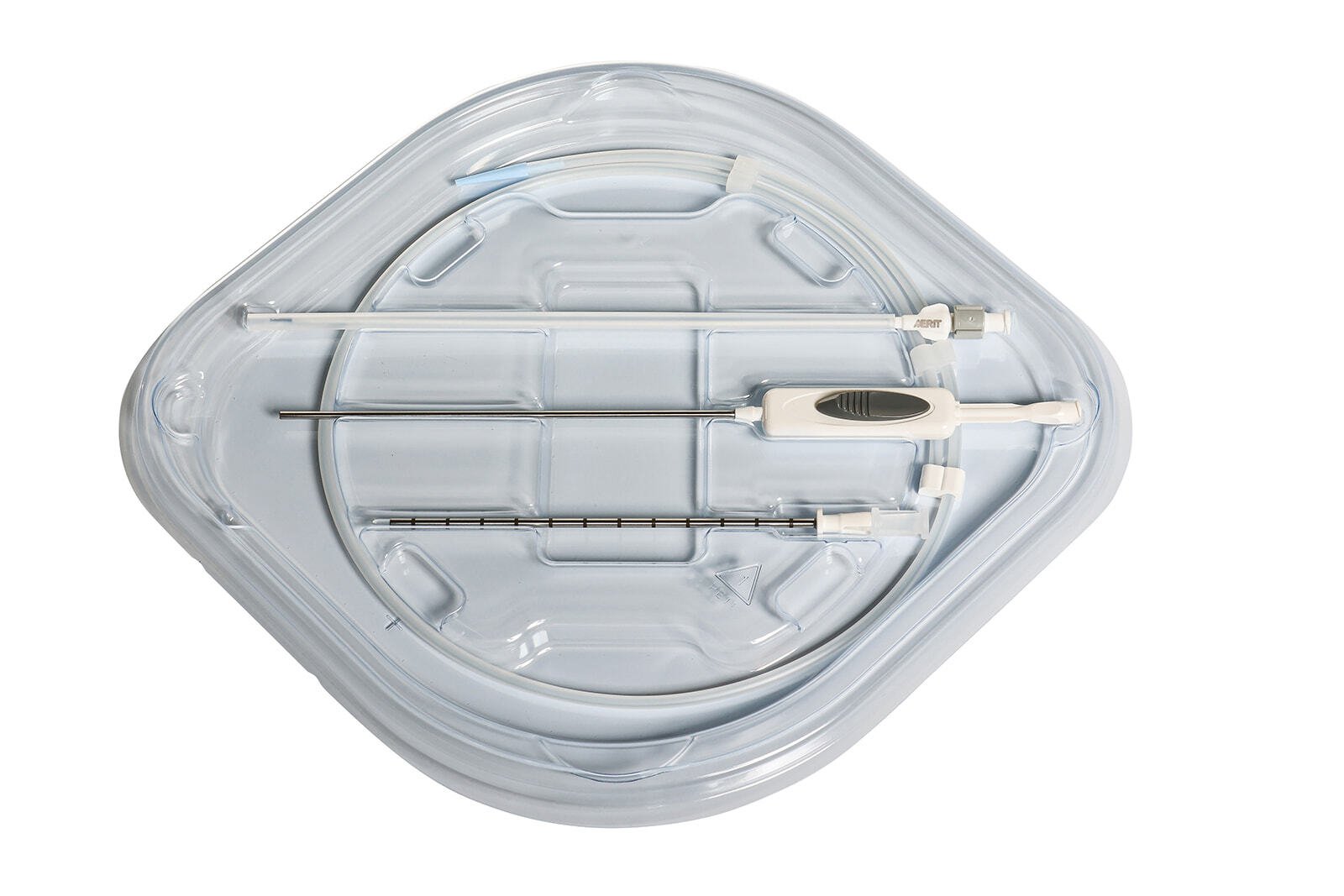

Kit Includes
- PeriCross Tunneler Assembly
- PeriCross Access Device
- .018” x 80cm Guidewire
- 5F x 18cm Coaxial Introducer
Demonstrated Clinical Performance
EASY-R Clinical Study (n=39)1:
- 100% successful epicardial access
- Mean time to access: 3 ± 3 minutes
- 20 of the 39 procedures (51.3%) achieved access in 2 minutes or less
- Low fluoroscopy time (2.0 ± 1.3 min) and minimal contrast use (0.7 ± 0.5 mL)
1"Epicardial Access StudY with Rook (EASY-R) - Final Clinical Study Report" - CIRCA internal test report. ClinicalTrials.gov ID: NCT06388629
Product Codes & Specifications
|
Product Code |
Description |
Kit Contents |
|
PC-1013 |
PeriCross Epicardial Access Kit |
PeriCross Access Device PeriCross Tunneler Assembly .018” x 80cm Guidewire 5F x 18cm Coaxial Introducer |
PeriCross Resources
Ready to Trial PeriCross?
Click the button below to request an evaluation of the PeriCross Pericardial Access Kit.
Related Products
CIRCA Esophageal Temperature Monitoring System
The CIRCA Temperature Monitoring System™ is designed to provide fast response to hot and cold temperature changes.
LEARN MORE
S-CATH™ Esophageal Temperature Probe
The S-CATH deploys an array of 12 coated, rapid response temperature sensors on a soft, flexible, “S” shape
LEARN MORE
S-CATH™ M Esophageal Temperature Probe
The S-CATH M provides the same accuracy you can trust, now visible on 3D cardiac mapping systems
LEARN MORE
MATRIX12 M™ Esophageal Temperature Probe
The MATRIX12 M provides with its unique GaplessGrid technology provides unprecedented speed, comprehensive coverage, and enhanced visualization on 3D cardiac mapping systems.
LEARN MORE
Regulatory Information
Indications for Use
The PeriCross™ Epicardial Access Kit is intended to access the epicardial surface of the heart via a subxiphoid approach to facilitate electrophysiology studies in adult patients
Regulatory Clearance
FDA 510(k) Clearance
