MATRIX12 M Esophageal Temperature Probe

Comprehensive coverage. Unprecedented speed. Expanded visualization on 3D cardiac mapping systems.

New GaplessGridTM flex-circuit provides unique visibility on 3D cardiac mapping systems displaying up to 18mm in width with the fastest temperature response time and broadest coverage in the industry.

Comprehensive coverage. Unprecedented speed.

Unprecedented Speed

Thermally-responsive, super thin copper GaplessGrid flex-circuit contains 12 surface mounted thermistors providing near-real-time detection of temperature changes.

Expanded 3D Visualization

With four electrodes positioned on the outer legs of its GaplessGrid flex-circuit, MATRIX12 M displays up to 18mm in width.

Comprehensive Esophageal Coverage

Patented GaplessGrid flex-circuit provides the broadest esophageal coverage for procedural confidence over  the entire target area.

New Software Gen 3

The MATRIX12 M technology utilizes the same CIRCA Scientific Temperature Monitor with an updated new-look software that includes many additional features

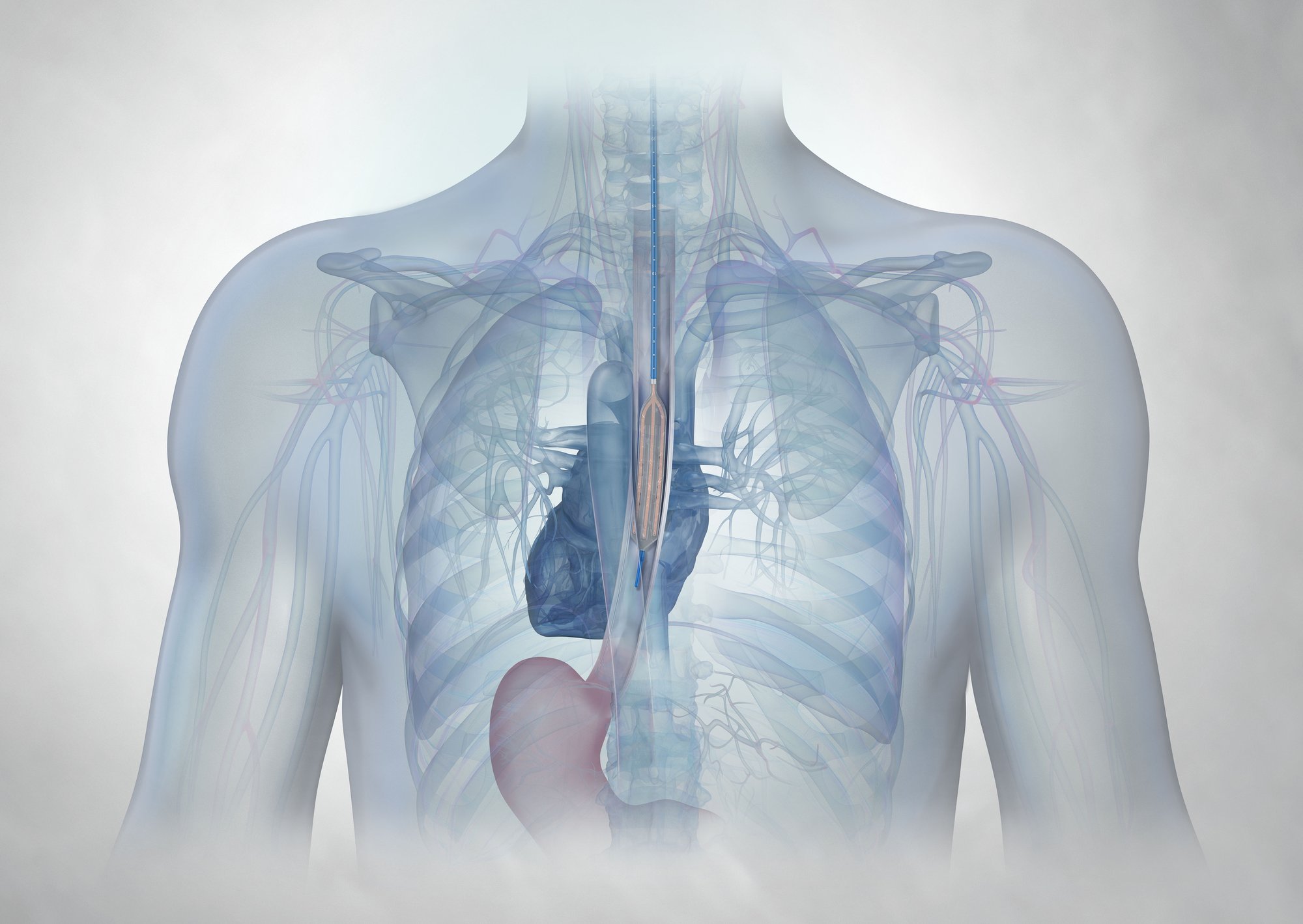

Posterior Matrix v1-2

Specifications and Ordering Information

Number of Temperature Sensors

12 (+1 400-Series Thermistor)

  Number of Mapping Electrodes

  4

Shape of Deployed Array

Flexible matrix array positions 12 sensor array throughout the esophagus.

Temperature Measurement Range

0ºC to 55ºC

Temperature Accuracy

± 0.3ºC from 10-45ºC

± 0.4ºC from 0 to < 10ºC & from > 45 to 55°C

Probe Diameter (OD)

14 French / 4.7 mm

Usable Length

51cm (tip to finger grip, undeployed)

63 cm (tip to finger grip, deployed)

Probe Outer Shaft Material

Thermoplastic Elastomer (Barium loaded)

MATRIX12 Probe Sleeve Material

Polyurethane film

  Temperature Sensors

  Type: Thermistor

  There is no sensor band

  Thermistor Size: 1mm long x 0.5mm wide

   Exposed Metal (per sensor): None

Mapping Electrodes

Type: Impedance

Material: Metal

Exposed Metal (per electrode): 7.2 mm2

Connector

Unidirectional Connector to Cable

Electrical Safety

Meets IEC 60601-1:2005 + A1: 2012 + A2:2020 when used with CIRCA Scientific Interconnect Cable and Monitor

# of Stylets

0

Packaging Unit

1 unit / shelf box

Packaging Description

Thermofrom tray with cover

Sterilization

Sterile (Ethylene Oxide)

Expiration

Three years from date of manufacture

Natural Rubber Latex Statement

Products and packaging are not made with natural rubber latex.

Key Benefits

Unprecedented Speed

When temperatures in the esophagus rise and fall quickly, MATRIX12 M detects these changes with unprecedented speed. Thermally-responsive, super thin copper GaplessGrid flex-circuit contains 12 surface mounted thermistors providing near-real-time detection of temperature changes.

LEARN MORE
Expanded 3D Visualization

MATRIX12 M changes the game by expanding visualization on 3D cardiac mapping systems.  With four electrodes positioned on the outer legs of its GaplessGrid flex-circuit, MATRIX12 M displays up to 18mm in width.  The electrodes provide maximum visualization with 8 times less metal exposure than a 7-sensor probe.*^

LEARN MORE
Comprehensive Esophageal Coverage

Patented GaplessGrid flex-circuit provides the broadest esophageal coverage for procedural confidence over  the entire target area. With an ultra-low  profile and compliant construction, MATRIX12 M facilitates easier deployment. The polyurethane sleeve provides electrical insulation, mitigating the risk of the RF Antenna Effect.^

LEARN MORE
New Software Gen 3

The MATRIX12 M technology utilizes the same CIRCA Scientific Temperature Monitor with an updated new-look software that includes many additional features, such as:

•     Robust data recording
•     Customizable user experience
•     Optional monitoring features

LEARN MORE

MATRIX Resources

Accessories

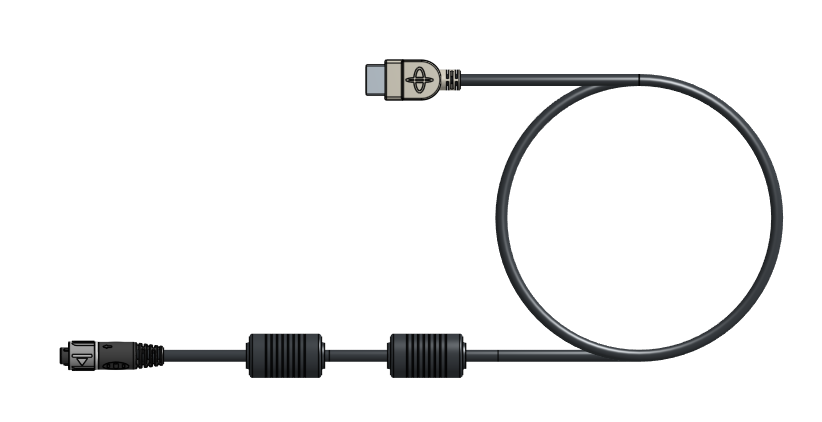

Image 10
CIRCA Interconnect Cable

The CIRCA Interconnect Cable is designed to connect the CIRCA MATRIX12 M™ to the CIRCA Temperature Monitoring System™.

cs100-mapping-cable
Mapping Interconnect Cable

The CIRCA mapping interconnect cable connects CIRCA MATRIX12 M™  to impedance-based 3-dimensional cardiac mapping systems.

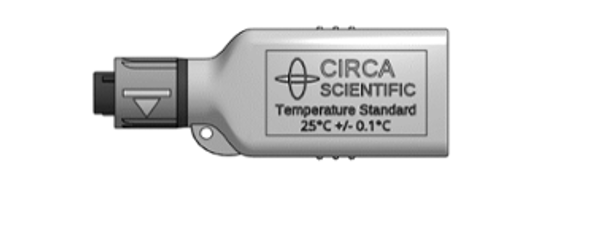

Screenshot 2024-04-03 094334
CIRCA Temperature Standard

The CIRCA Temperature Standard is used to verify the accuracy of the CIRCA Temperature Monitoring System™.

Ready to Trial MATRIX?

Click the button below to request an evaluation of the MATRIX12 M Esophageal Temperature Probe.

Related Products

Regulatory Information

Indications for Use

The CIRCA Temperature Monitoring System is composed of CIRCA Temperature Monitor and the CIRCA MATRIX12™ M
Probe and is intended for the continuous detection, measurement and visualization (in °C) of esophageal temperature.
The intended environments of use are operating rooms and interventional electrophysiology rooms. The CIRCA
Monitor must be used in conjunction with the CIRCA MATRIX12™ Probe.


The role of esophageal temperature monitoring using this device in reducing the risk of cardiac ablation-related
esophageal injury has not been established. The performance of the CIRCA MATRIX12™ M temperature probe in
detecting esophageal temperature changes as a result of energy delivery during cardiac ablation procedures has not been
evaluated.

Regulatory Clearances and Standards

FDA 510(k) Clearance

Footnotes

*28.8mm2 vs 235.9mm2
^Internal testing data on file
