Edge to Edge Coverage

Uniquely designed soft, flexible, “S” shape provides Edge-to-Edge coverage

CIRCA esophageal temperature probes are designed to deploy 12 sensors throughout the esophagus, positioning the sensors throughout the length and width of the esophagus, ensuring sensor proximity close to the point of treatment.   Once properly positioned, the probe’s position is stationary and does not require further manipulation to relocate the temperature sensors.

Importance of temperature sensor location

In addition to the responsiveness of the temperature sensor, position of the sensor is vital to accurate measurement of esophageal temperature.

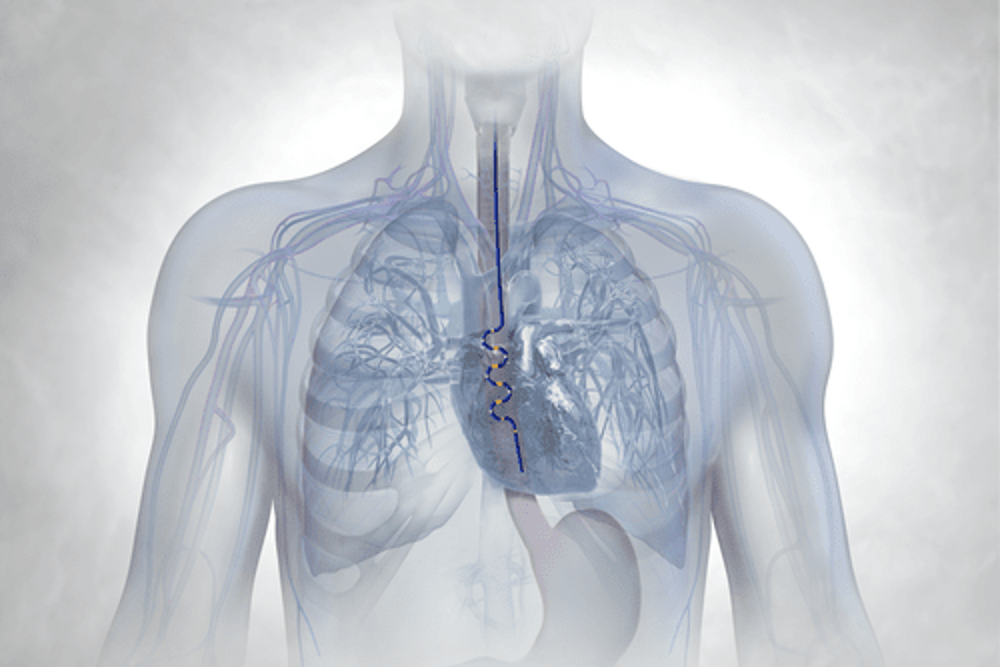

x-ray-image-of-cath-monitor-inside-esophagus

Studies have demonstrated that a temperature sensor which is just 2mm from the source of a temperature rise will result in a measurement which is lower than the peak temperature.1

The same study demonstrates that the further the sensor is from the source of a temperature rise, the greater the disparity between the measured temperature and the peak temperature in the esophagus. An improperly positioned temperature sensor may provide inaccurate information for the clinician.

Linear probes are prone to lateral (side-to-side) positioning. Studies show that 57% of the time, a straight probe will be located either to the far right or right side of the esophagus, rather than in the middle of the esophageal lumen.5

multiple-sensors

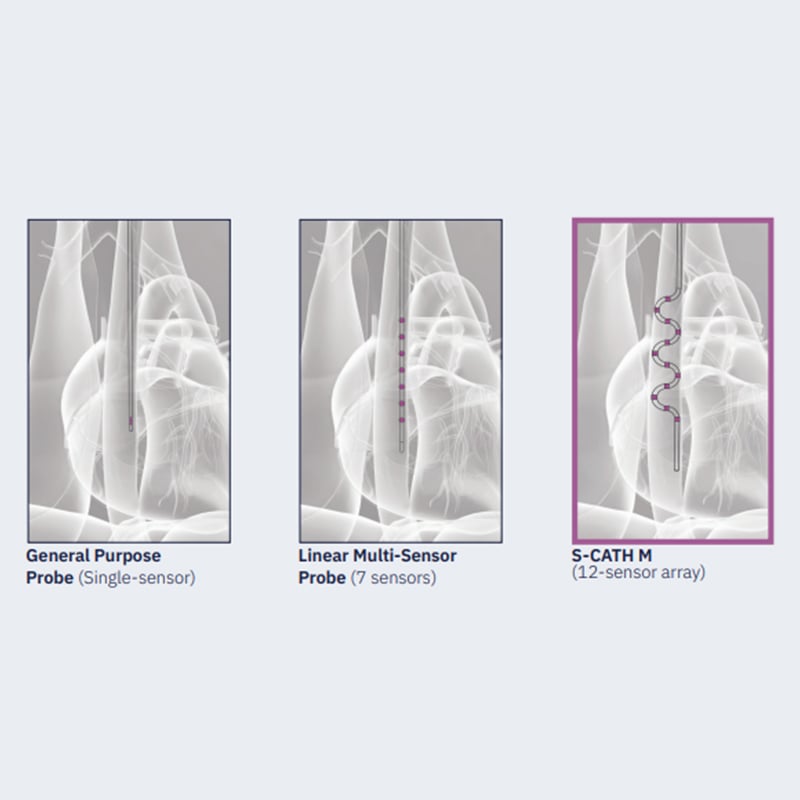

Multiple Sensors2

In an  independent prospective study of 198 applications in 10 patients, a temperature rise of >2.0°C was recorded 40 times by the S-CATH. Single sensor probes missed 90% of those temperature rises.

max-esophageal-coverage-web
Maximum Esophageal Coverage3

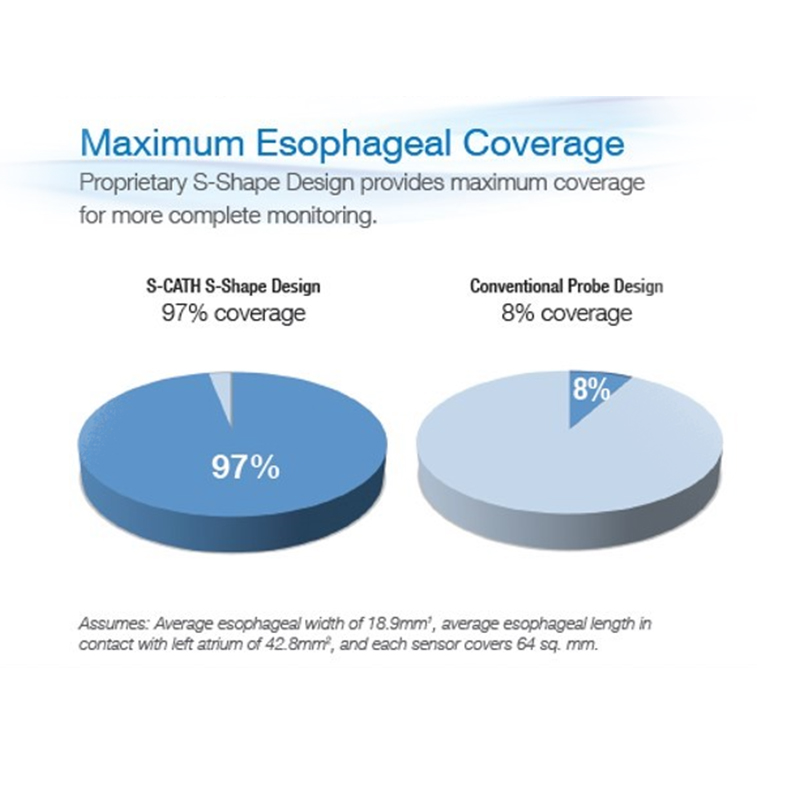

Once properly positioned, the S-Cath’s 12 temperature sensors provide maximum Esophageal Coverage. On average, the S-Cath’s S-shape temperature sensors cover 97% of the esophagus. Using the same methodology, a single sensor covers just 8% of the esophagus in any single position.
